The JCB Loadall range is one of the most extensive in the world, offering the very highest levels of performance and productivity with world-beating build quality, unrivaled comfort and high residual values.
Loadalls

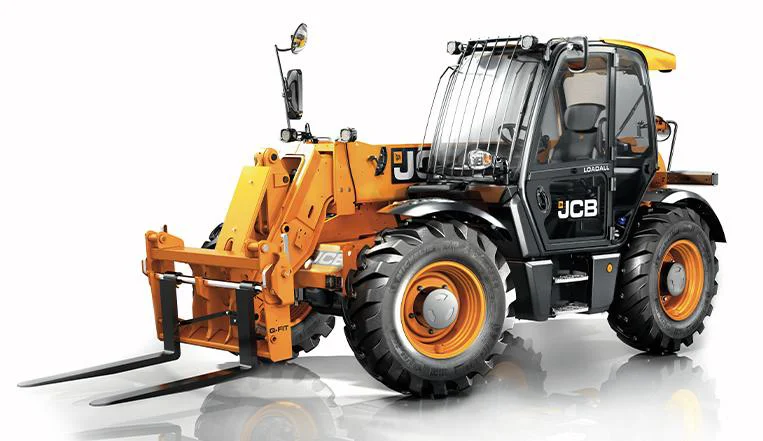

541-70AG
Gross Power: 85 kW (114 hp)
Lift Capacity: 4 100 kg
Lift Height: 7 m
Overview
Technical Data
| Engine | JCB Diesel max 4.4 |
| Gross Power | 74.2 kW @ 2 200 rpm |
| Net Torque | 440 Nm @ 1 300 rpm |
| Emission Rating | Stage III |
| Transmission | Powershift Gearbox, 4 forward & 4 reverse powershift gears |
| Hydraulics | 241 bar, 100 + 72 litres/min |
| Tyres | 445/70 R24 |
| Attachments | JCB Q-fit carriage, 1,0 m³ bucket, Forks 1 200 mm, quick attach (Q-fit) |
| Cabin | Enclosed, tinted glass, heater and air conditioner, ROPS/FOPS certified |
| Max Lift Capacity | 4 100 kg |
| Lift Height | 7 m |
| Telematics | Livelink Standard |
| Operating Weight | 7 800 kg |
| Length/Height/Width | 4 990/2 490/2 290 mm |
| Standard Warranty | 12 months, unlimited hours |
| Additional Options | Factory build options available |
