The JCB Loadall range is one of the most extensive in the world, offering the very highest levels of performance and productivity with world-beating build quality, unrivaled comfort and high residual values.
Loadalls

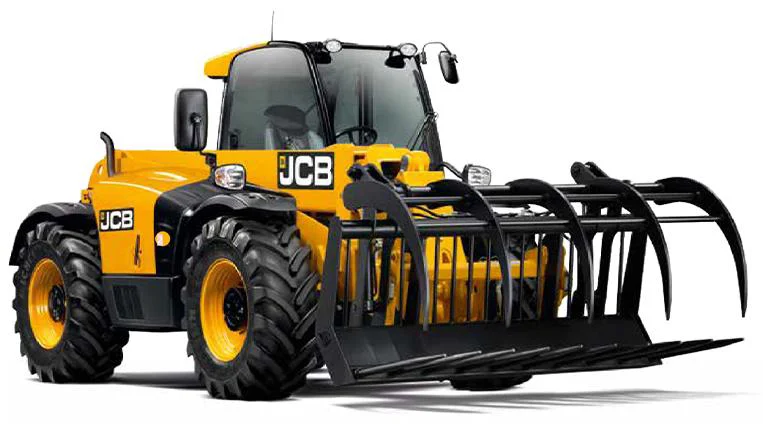

535-95AG
Gross Power: 85 kW (114 hp)
Lift Capacity: 3 100 kg (6 834 lbs)
Lift Height: 7 m
Overview
Technical Data
| Engine | JCB Diesel max 4.4 |
| Gross Power | 74.2 kW @ 2 200 rpm |
| Net Torque | 440 Nm @ 1 300 rpm |
| Emission Rating | Stage III |
| Transmission | Powershift Gearbox, 4 forward & 4 reverse powershift gears, Manual and Auto |
| Hydraulics | 241 bar, 100 + 72 litres/min |
| Tyres | 445/70 R24 |
| Attachments | JCB Q-Fit carriage, General Purpose Shovel, Bucket with Grab, Heavy Duty Forks, Grain Bucket, Shear Grab |
| Cabin | Optional Air conditioning ROPS/FOPS certified. |
| Max Lift Capacity | 3 500 kg |
| Lift Height | 9.5 m |
| Telematics | Livelink Standard |
| Operating Weight | 8 020 kg |
| Length/Height/Width | 4 990/2 490/2 360 mm |
| Standard Warranty | 12 months, unlimited hours |
| Additional Options | Factory build options available |
